5 MP Video Balun

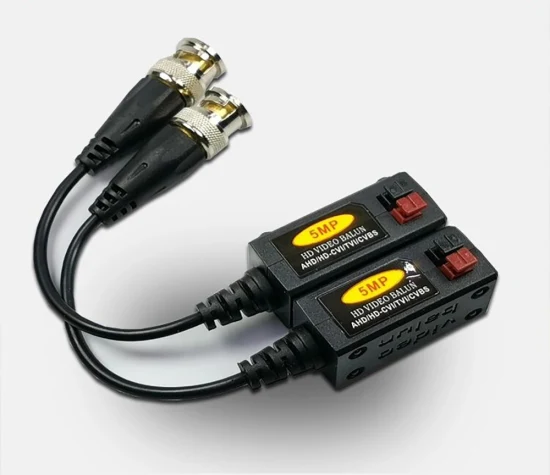

The 5 MP Video Balun is a high‑performance single‑channel passive transceiver designed to transmit HD video signals over twisted‑pair cabling (UTP Cat5/5e/6). Supporting resolutions up to 5MP, it converts unbalanced 75‑ohm coaxial signals to balanced 100‑ohm signals for long‑distance runs—perfect for integrating analog and HD‑over‑coax cameras with structured cabling infrastructure.

Reliable Transmission & Wide Compatibility

Compatible with HD‑CVI, HD‑TVI, AHD, and CVBS formats, the 5MP Video Balun handles resolutions from 720P up to 5MP. Maximum transmission distances reach 400 meters for AHD/CVI signals and 300 meters for TVI/CVBS when using quality Cat5e/6 cable. With >60dB anti‑interference, it ensures stable video even in electrically noisy environments.

Easy Installation & Compact Design

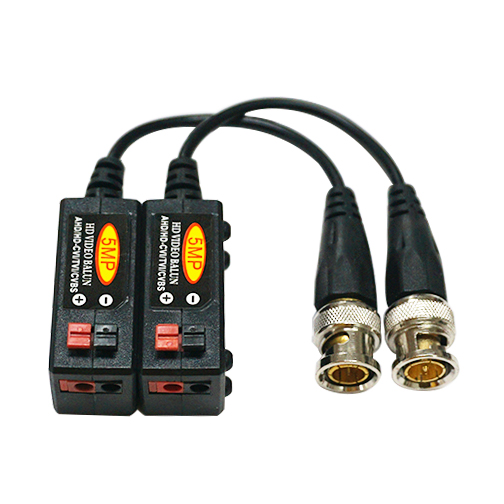

The balun features a BNC‑M coaxial connector and a push‑terminal twisted‑pair connection, allowing tool‑free wiring. Its compact form factor fits discreetly in junction boxes, behind cameras, or inside DVR enclosures. No external power is required—the device draws power from the connected camera or recorder, simplifying deployment.

Durability & Protection

Built‑in surge protection guards equipment against voltage spikes and electrical transients, ensuring reliable performance in demanding installations. The corrosion‑resistant contacts and rugged housing provide long‑term durability for both indoor and protected outdoor use.

Ideal for CCTV System Upgrades & New Installations

Whether you’re extending existing coaxial runs, migrating to structured cabling, or setting up a new HD surveillance system, the 5MP Video Balun offers a cost‑effective, plug‑and‑play solution for transmitting high‑definition video with ease.
