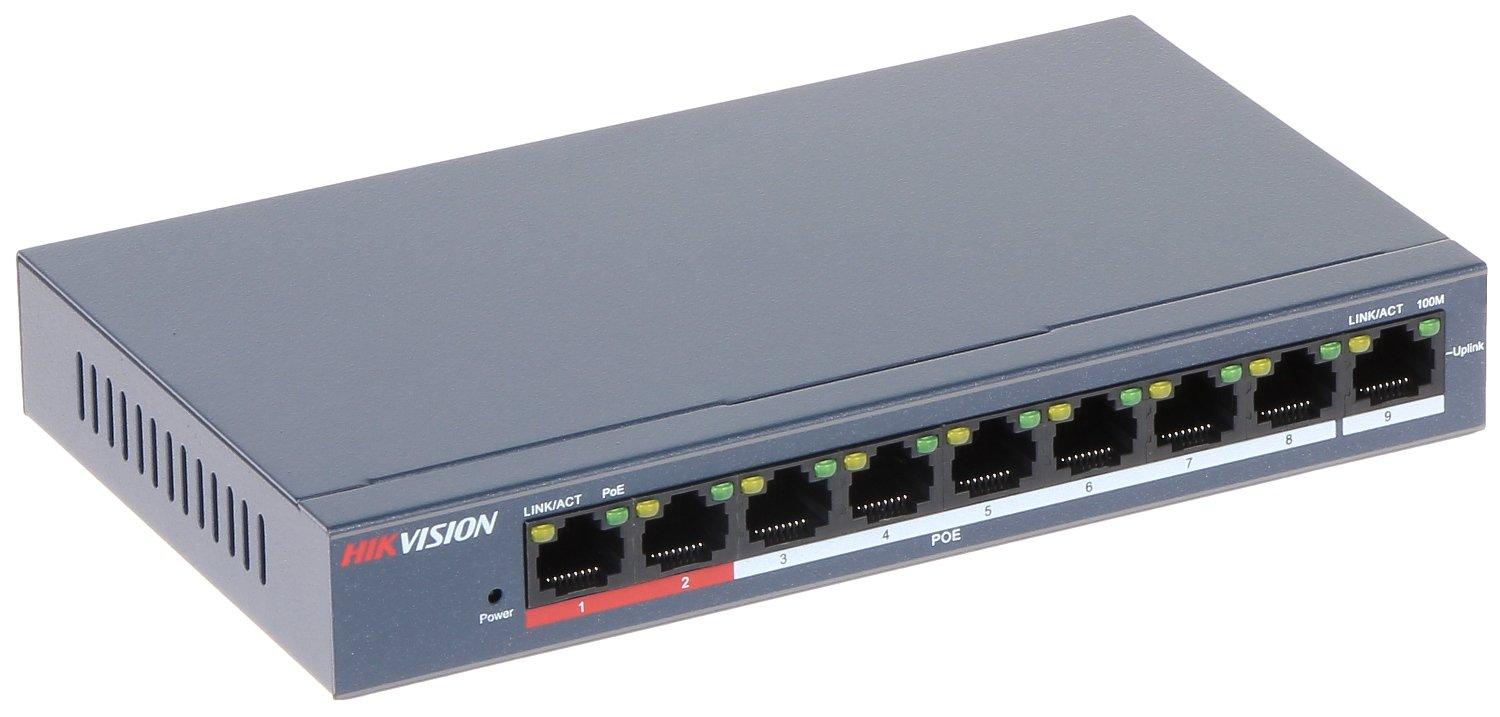

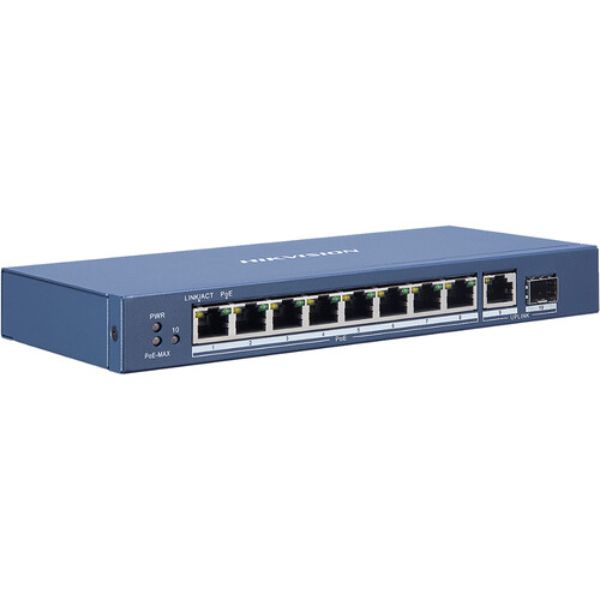

PoE 8 Port DS-3E0109P-E/M

PoE DS-3E0109P-E/M 8 Port

Ai version, with PoE 8 Port function, real-time detection of the status of PoE 8 Port electrical equipment when POE is started; when the device side is abnormal, the switch actively resets the port and restores the power supply of PoE; realize no duty. Single port PoE power up to 30W (select the first port of Ai version to output HiPoE_60W) International POE General Standard IEEE802.3af/at PoE++/HiPoE/BT

Supporting full-port standard detection function Supports power supply through POE devices such as wireless access points (AP) and network surveillance cameras over 5/6 Ethernet lines Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back Pressure standard Support automatic port flip (Auto MDI/MDIX) Support port lightning protection (secondary lightning protection requirements)

Exchange mechanism using storage and forwarding All ports support line speed switching and giant frame transmission Zero Configuration Characteristic, Automatically Provided to Adaptive Equipment Panel indicator lamp monitoring work status and help fault analysis. This function will help protect the system if the system power becomes overloaded.

8-port PoE switches to transmit data and supply for PoE Dog devices, such as IP cameras, wireless AP, VoIP, etc. Standard IEEE 802.3af(15.4W) supply for eight PoE ports.

Features:

9×10/100Mbps auto-sensing RJ45 ports, 8×10/100Mbps PoE ports, 1xUplink Ethernet port.

Can supply network surveillance cameras that with PoE function.

Supports port auto-flip (Auto MDI/ MDIX).

Maximum of single PoE port: 15.4W.

Adopts store-and-forward architecture.

Features with fanless, natural cooling, small, compact, and quiet design, suitable for desktop or wall.

Built-in supply.

Specifications:

Standard: IEEE802.3af

Consumption: 150W

adapter voltage: Input AC 100V-240V

PoE switch input: DC 44V-57V

Network port: 1-8 port: 10/100Mbps PoE Ethernet Port; uplink port: 10/100Mbps Ethernet Port

Transmission distance: 100m

Transmission media: Cat5/5e/6 standard network cable

PoE consumption: af≤15.4W

Working temperature: 0℃-55℃

Storage Temperature:-20℃-70℃

Relative humidity: 20%-95%

MTBF: >30000h

Item size: 27 * 18 * 4.5cm / 10.6 * 7.09 * 1.77in

Item weight: 1103g / 2.43Lb

Package weight: 1280g / 2.82Lb

Package size: 29 * 23.5 * 5.8cm / 11.4 * 9.25 * 2.28in

Package list:

• 1 * PoE switch
• 1 * adapter
• 1 * English user manual
