About the HIkvision 4 Channel Full

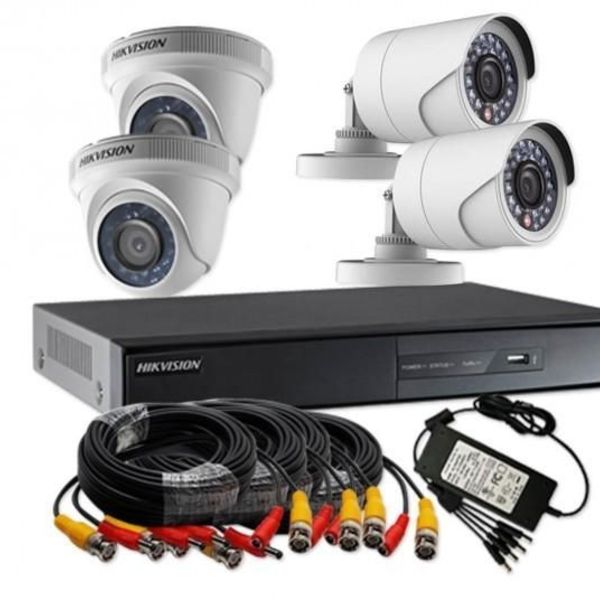

HIkvision 4 Channel Full Kit First introduced to the market in 2013, Hikvision Turbo HD revolutionized analog surveillance by integrating the High Definition Transport Interface (HDTVI) open standard. Based on the original analog transmission media, the HDTVI standard allows HD video to be transmitted over a coax-based system at an extended distance with higher reliability.
Hikvision is the first to introduce the H.265+ high-efficiency coded to DVRs.Hikvision 4Channel plastic Body Turbo HD DVR with 2MP (1080P) 2 Dome & 2 Bullet Cameras Combo Kit without Hard Disk. Hikvision DS-7A04HGHI- F1/ECO 4CH Turbo HD Metal Body DVR 1Pcs, Hikvision DS-2CE5AD0T-IPECO 3.6mm 2MP Turbo HD Night
Vision Dome Cameras 2Pcs, Hikvision DS-2CE1AD0T-IPECO 3.6mm Turbo HD Night Vision Bullet Cameras 2Pcs, Full 90Mtr 3+1 CCTV Copper Cable 1Bundle, 4CH CCTV Power Supply, BNC 8Pcs, DC 4Pcs. Hard Disk and Installation not included.
Product details
Has all necessary items required for 4 channel CCTV installation apart from the monitor (not included). All items are of high quality!!
Real-Time capture
You will be amazed by the stunning image quality and price of Hikvision Cameras in Kenya. It’s like comparing the difference between a VHS videotape and a Blu-Ray movie, allowing you to see details and colors like never before.
If an incident occurs you can transfer video files to backup media via the easily accessible USB port or save them to your network.
Easy Installation
Installation and set up easy, simply run the cable from the camera to the HD DVR and click the cables into place and you’re set. – It really is that easy.
Getting Started Is A Breeze
Setting up the DVR for remote viewing has never been easier or faster with Hikvision’s HD DVR software wizard guiding you through set-up and making everyday use easier.
Technical Specifications:
Video/Audio Input
- Video Compression: H.264
- Analog and HD-TVI video input: 4-ch, BNC interface (1.0Vp-p, 75 Ω)
- Supported camera types: 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
- IP Video Input: 1-ch 1080P
- Video-Input Interface: BNC (1.0 Vp-p, 75Ω)
- Audio Compression: G.711u
- Two-way Audio: 1-ch RCA(2.0Vp-p, 1kΩ)
Video/Audio Output
- HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
- Recording resolution: Main stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
- Frame Rate: Mainstream: 1/16 fps ~ Real time frame rate
- Sub-stream: 1/16 fps ~ Real time frame rate
- Video Bit Rate: 32Â Kbps-6Â Mbps
- Audio Output: 1-ch RCA(2.0 Vp-p, 1kΩ)
- Audio Bit Rate: 64kbps
- Dual Stream: Support
- Playback Resolution: 1080PÂ /Â 720PÂ /Â VGAÂ /Â WD1Â /Â 4CIFÂ /Â CIFÂ /Â QVGAÂ /Â QCIF
- Synchronous Playback: 4-ch
Network management
- Remote connections: 128
- Network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk Driver
- Interface Type: 1Â SATAÂ Interface
- Capacity: Up to 4TB
External Interface
- Network Interface: 1; 10M / 100M self-adaptive
- Â interface
- USB Interface: 2Â USBÂ 2.0Â Interfaces
- Serial Interface: 1; standard RS-485 serial interface, half-duplex
General
- Power Supply: 12VÂ DC
- Consumption: ≤ 15W
- Working Temperature: -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
- Working Humidity: 10%Â ~Â 90%
- Chassis: 1UÂ chassis
- Hikvision 4CH Turbo HD Mini DVR with 1MP (720P) 2 Dome Cameras Combo Kit without Hard Disk.
- Hikvision New Upgraded DS-7A04HGHI-F1 4CH Turbo HD Mini DVR 1Pcs, New Upgraded DS-2CE5AC0T-IRPF, 90Mtr Copper Cable 1Bundle, 4CH CCTV Power Supply, BNC 4Pcs, DC 2Pcs. Hard Disk and Installation not included.
- DVR Description: H.264 / H.264+ & Dual-Stream Video Compression, Support both HDTVI / Analog and AHD cameras with adaptive access, Full channel recording at up to 1080P lite resolution.
HDMI and VGA output at up to 1920 x 1080P Resolution, Long transmission distance over coax cable, Support 4ch synchronous playback at 720P resolution. Playback Resolution – 1080p lite/720p/WD1/4CIF/VGA/CIF. 1SATA can support up to 6TB HDD. HIkvision 4 Channel Full
- Dome Camera Description: 1.0 Megapixel high-performance CMOS. Turbo HD output, Up to 720P resolution.
True Day / Night, DNR, Smart IR. Up to 20m IR distance, Switchable TVI/AHD/CVI/CVBS. Effective Pixels- 1296 (H) x 732 (V). Min. illumination- 0.1Lux @ (F1.2, AGC ON), 0 Lux with IR. Signal System – PAL/NTS
- 4CH Turbo HD DVR 1Pcs,
- Bullet Camera 4 Pcs.
- 1 TB Seagate/WD/Toshiba Hard Drive 1Pcs,
- CCTV Copper Cable 1 Bundle,
- Bnc 8 Pcs, Dc 4 Pcs,
- 4CH Power Supply 1Pcs
