Maglock 280KG Access Control System

Maglock 280KG Access Control System

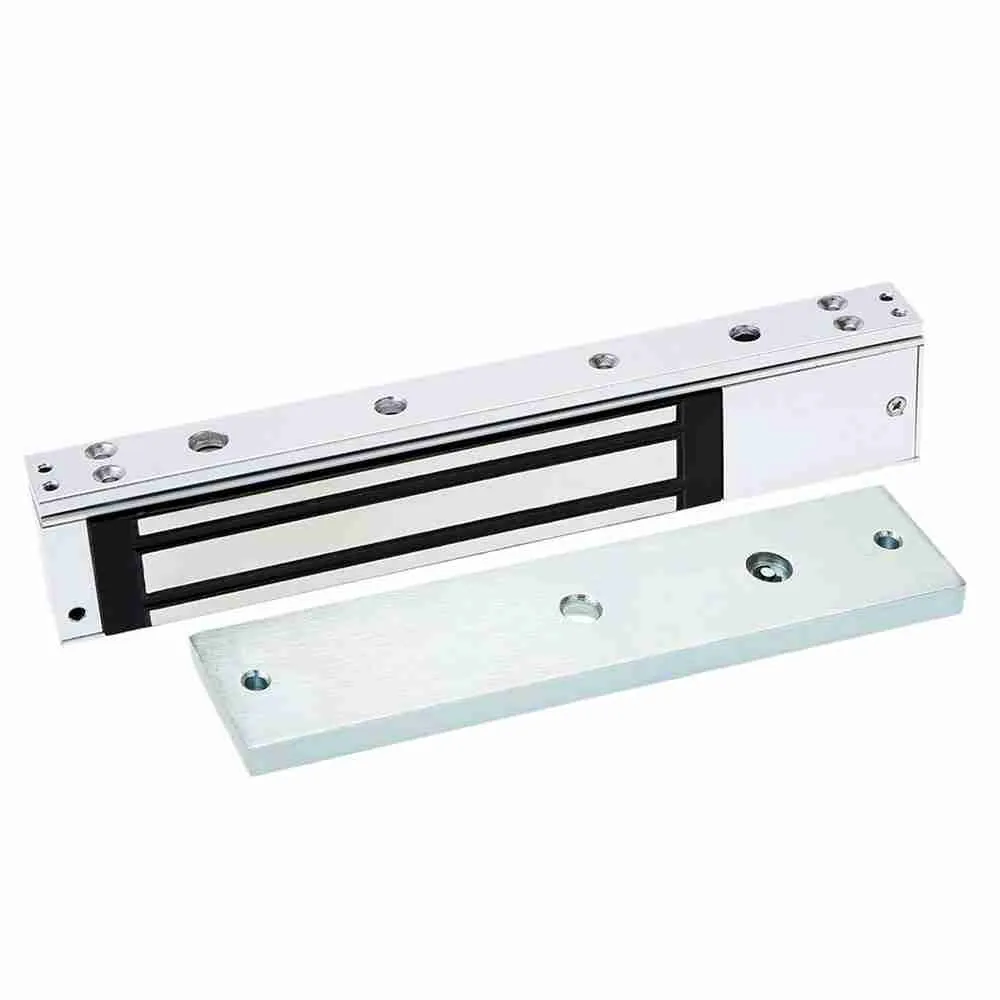

Maglock Single door 12v electric magnetic electromagnetic lock 280kg (600lb) holding force for access control. 90 degrees open for all kinds of doors with frame, use the magnetic power to lock the door, 280kgs (600lbs) holding force.

built-in reverse current protection device (MOV). the aluminum shell adopts high strength material, with hard anodized processing. corrosion-resistant. good quality and durable to use.

maglock with led light can be opened by push button, remote controller, etc. fit for wooden door, metal door, glass door, fireproof door, etc.

Features:

Unfold installation(large)

Power-on to lock

No residual magnetism, no mechanical damage, single door

90 degrees open for all kinds of doors with frame

Frameless doors or inswinging door doors can choose accessories

Single door electric lock is for glass door, wooden door, small size door, easy to install. Accessories are available

for the inswing door, glass door, narrow doorframe door, and so on. Special anti-residual magnetism >designed makes the access control.

Specifications:

• Holding force: 280kg / 600LB
• Voltage: DC 12V
• Current: 380 – 430 mA
• Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
• Humidity: 0 to 95%
• Working mode: power-on to lock
• Lock size: 25 * 4.7 * 2.5cm / 9.8 * 1.8 * 0.9in
• Lock weight: 1057g / 23.3lb
• Plate size: 18 * 3.9 * 1.1cm / 7 * 1.5 * 0.4in
• Plate weight: 580g / 1.2lb
• Package size: 27 * 6.3 * 6.3cm / 10.6 * 2.4 * 2.4in
• Package weight: 1786g / 3.9lb
