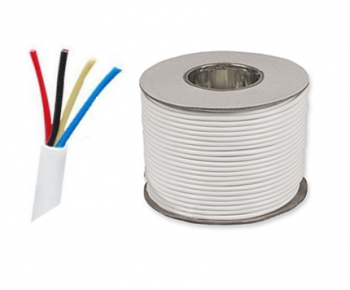

Alarm Cable in Kenya 4 Core

  • 4 Core alarm Cable
  • Yellow, Black, Blue, Red
  • PVC Insulated
  • PVC Sheathed

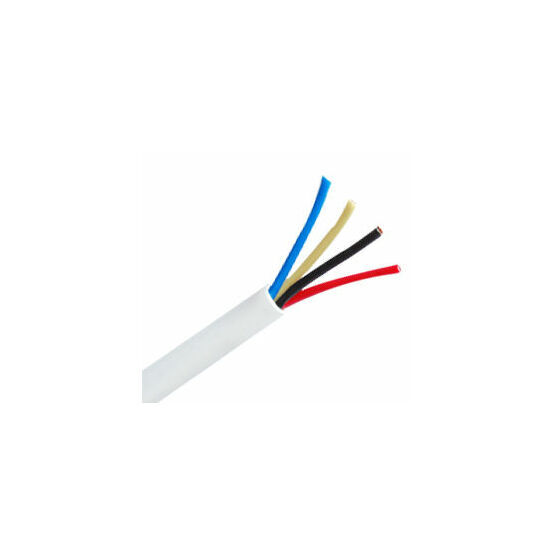

4 Core Burglar Alarm Cable White

This Alarm Cable in Kenya consists of individually colored cores. The Doncaster Cables range of security cables meets the requirements of both domestic and commercial systems. The Alarm Cable in Kenya has a tubed sheath construction and incorporates a tough nylon ripcord; making it easy to tear the mechanically strong but pliable sheath.

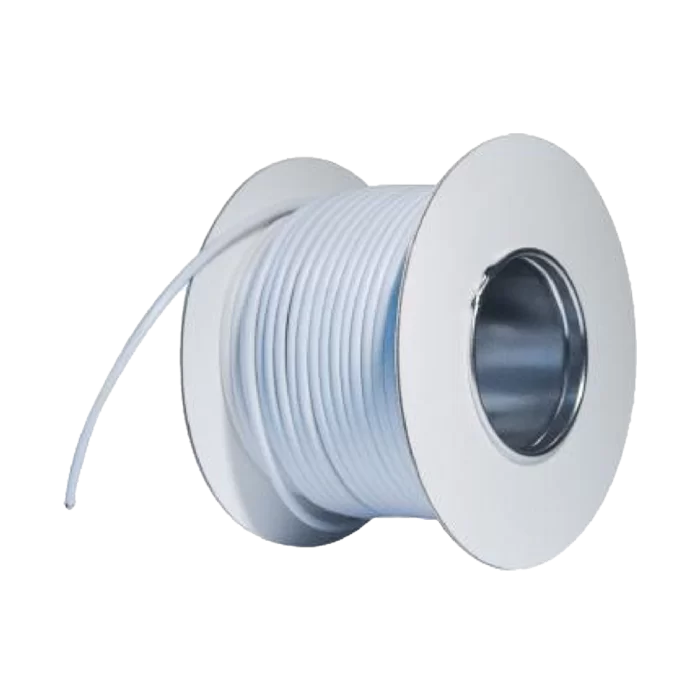

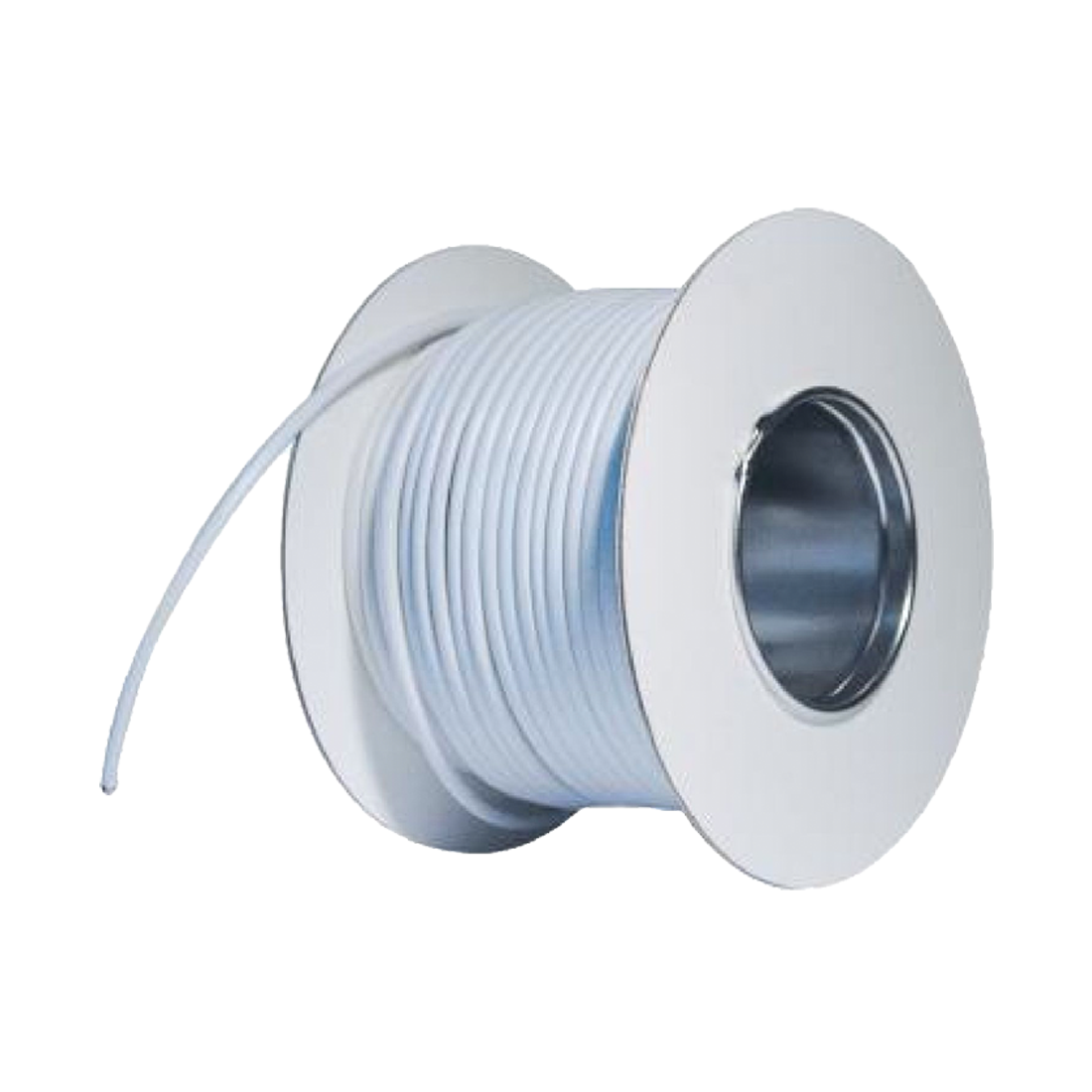

Alarm Cable 4 Core 100m

These cables are primarily designed for use with security alarms systems. However, they are also suitable for signaling in other applications where low voltage and low currents are being used.

Price per meter
BASIC approved
Core Colour Red, Yellow, Blue, Black
Conductor Class 5 Tinned Copper to BS EN 60228
Insulation PVC to BS EN 50363-3.2
Sheath PVC to BS 7655-4.2
Min Operating Temp. -15°C
Max Operating Temp. 70°C
Min Bending Radius 6 x Ø
Sheath Colour White
Minimum Radial Thickness of insulation (mm) 0.15
Minimum Radial Thickness of Sheath (mm) 0.4
Nominal Overall Diameter (mm) 4.0

This Security Alarm Cable in Kenya is suitable for a wide range of applications including, security systems, sound and intercom systems, power-limited controls, fire and burglar alarm systems, single-line telephones, carbon monoxide alarm systems, intruder alarm systems, smoke alarm systems just but to mention a few


  • 4 cores
  • Core colors: Red, Blue, Yellow, Black
  • Sheath color: White PVC (Polyvinyl Chloride) BS6746
  • BS4747: section 3.30 approved
  • Conductor: Tinned copper
  • Conductor constructed of 7 strands of 0.2mm tinned copper
  • Insulation: PVC (Polyvinyl Chloride)
  • Temperature rating: -10ºC to +70ºC
  • Cable diameter: 3.5mm
  • Voltage rating: 60 v.a.c
  • 100 meters per coil
