HIkvision HD Video Doorbell Intercom Kit DS-KIS203

HIkvision HD Video Doorbell Intercom Kit DS-KIS203

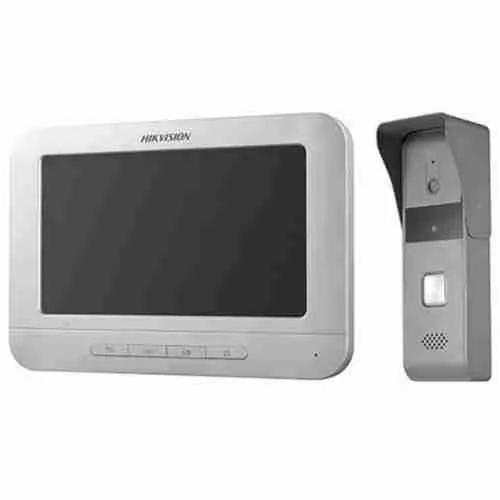

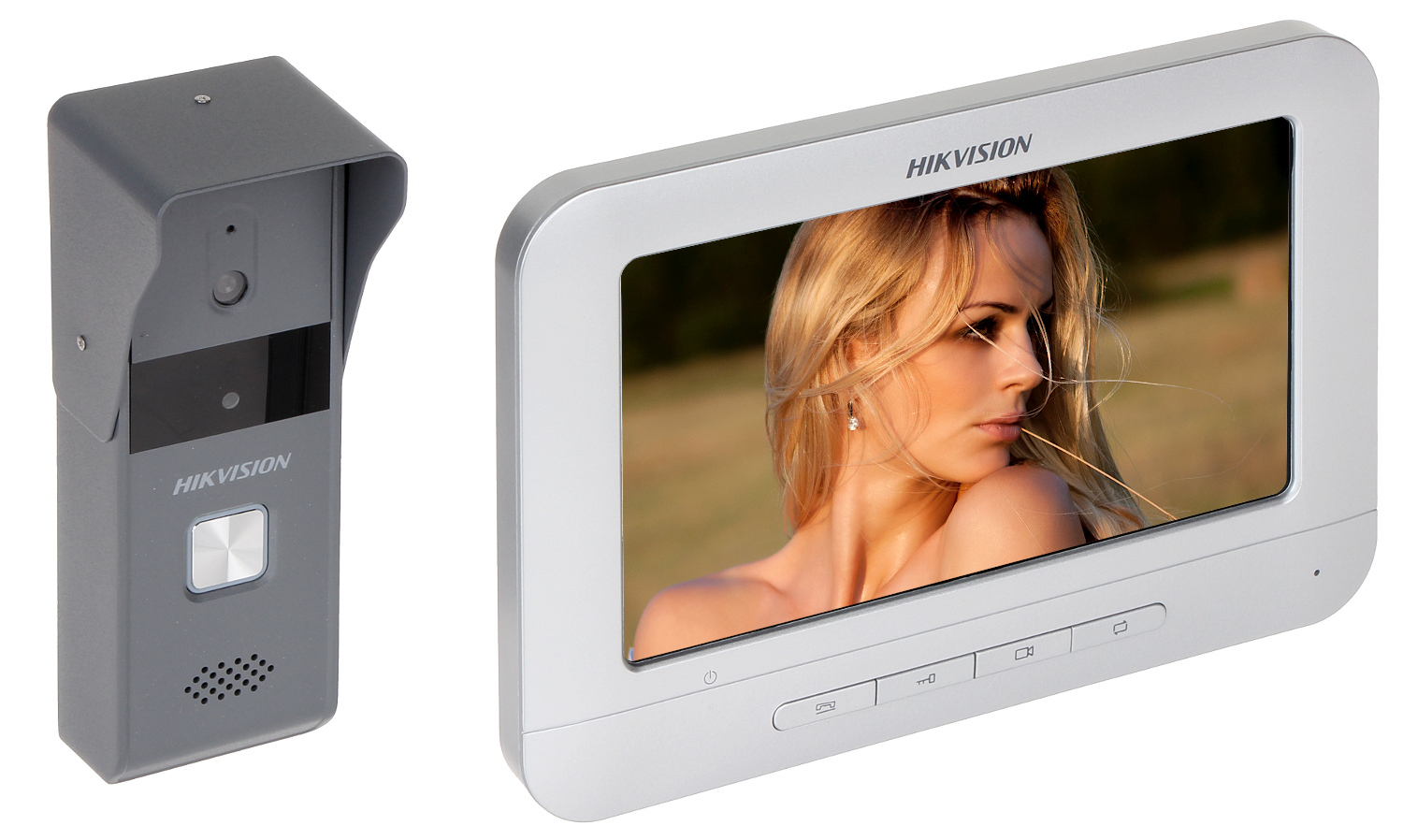

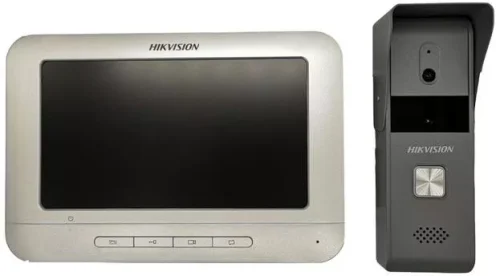

DS-KIS203 a HIkvision HD Video Doorbell intercom system dedicated to single-story homes.

It consists of a 7″ DS-KH2220 indoor station/monitor with a resolution of 800 x 600 px and a DS-KB2421-IM gate/door station equipped with a color pinhole camera with a resolution of 720 x 576 px.

HIkvision HD Video Doorbell DS-KIS203 indoor monitor is made in TFT LCD technology and supports up to 2 gates/door stations.

The monitor can cooperate with CCTV analog camera operating in CVBS standard and use to display the video from the camera and the door station(s) and control the electric strike(s).

The external/outdoor door station is a panel made of zinc alloy, equipped with a relay dedicated to controlling the electric strike, a pinhole camera, and an IR illuminator with a range of 2 m, ensuring correct visibility of the caller in the absence of lighting.

Thanks to small dimensions, the panel can aesthetically mounted even on a narrow metal post. The whole set can extend with additional 2 monitors and an additional gate/door station. The video door phone uses a 4-wire system.

• gate/door station with a color pinhole camera (720 x 576 px).
• gate/door station made of zinc alloy (vandal-proof – IK7) and weather-protected (IP65).
• relay output for an electric door strike.
• indoor station: 7″ color TFT LCD monitor (800 x 480 px).
• one monitor can support 2 gates/door stations and 1 CCTV camera (CVBS).
• possibility of using up to 3 monitors supporting 2 door stations and 3 CVBS cameras.
• 4-wire system.
• power: 12V-DC.
• HIkvision HD Video Doorbell DS-KIS203.
