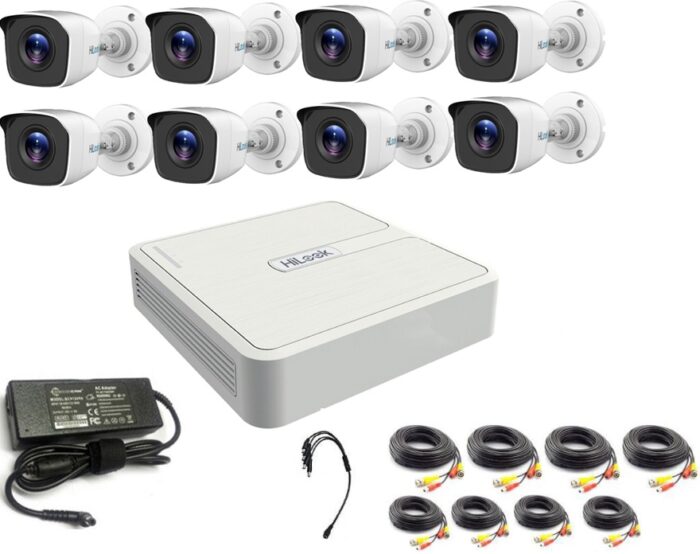

Hilook 8 Channel Full Kit

ABOUT HI LOOK 8 CHANNEL FULL KIT

Real-Time capture on Hilook 8 Channel

You will be amazed by the stunning image quality of Hikvision. It’s like comparing the difference between a VHS videotape and a Blu-Ray movie, allowing you to see details and colors like never before.

If an incident occurs you can transfer video files to backup media via the easily accessible USB port or save them to your network.

Easy Installation

Installation and setup are easy, simply run the cable from the camera to the HD DVR and click the cables into place and you’re set. – It really is that easy.

Getting Started Is A Breeze

Setting up the DVR for remote viewing has never been easier or faster with Hilook 8 channel HD DVR software wizard guiding you through set-up and making everyday use easier.

• H.264 & Dual-stream video compression
• Support HD-TVI/analog/IP camera triple hybrid
• Support both HD-TVI and analog cameras with adaptive access
• Full channel@1080P resolution real-time recording
• HDMI and VGA output at up to 1920×1080P resolution(buy cables)
• The long transmission distance over coax cable

Stay Alert At Any Time

Technical Specifications of hilook 8 channel:

Video/Audio Input

• Video Compression: H.264
• Analog and HD-TVI video input: 8-ch, BNC interface (1.0Vp-p, 75 Ω)
• Supported camera types: 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
• IP Video Input: 1-ch 1080P
• Video-Input Interface: BNC (1.0 Vp-p, 75Ω)
• Audio Compression: G.711u
• Two-way Audio: 1-ch RCA(2.0Vp-p, 1kΩ)

Video/Audio Output

• HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
• Recording resolution: Main stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF;Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
• Frame Rate: Main stream: 1/16 fps ~ Real time frame rate
• Sub-stream: 1/16 fps ~ Real time frame rate
• Video Bit Rate: 32 Kbps-6 Mbps
• Audio Output: 1-ch RCA(2.0 Vp-p, 1kΩ)
• Audio Bit Rate: 64kbps
• Dual Stream: Support
• Playback Resolution: 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
• Synchronous Playback: 8-ch

Network management

• Remote connections: 128
• Network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk Driver

• Interface Type: 1 SATA Interface
• Capacity: Up to 4TB

External Interface

• Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
• USB Interface: 2 USB 2.0 Interfaces
• Serial Interface: 1; standard RS-485 serial interface, half-duplex

General

• Power Supply: 12V DC
• Consumption: ≤ 15W
• Working Temperature: -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
• Working Humidity: 10% ~ 90%
• Chassis: 1U chassis
