Alarm Cable 6 Core White 100 Meters

Alarm Cable 6 Core White 100 Meters

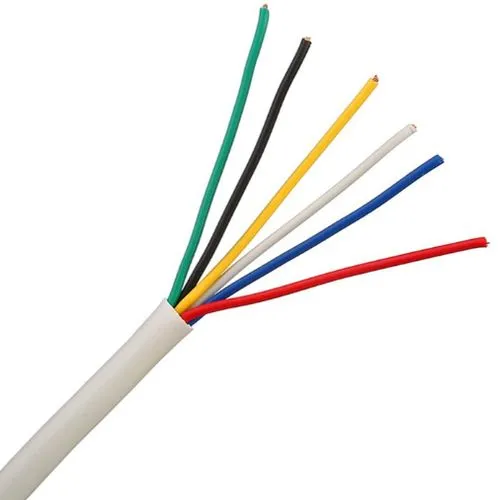

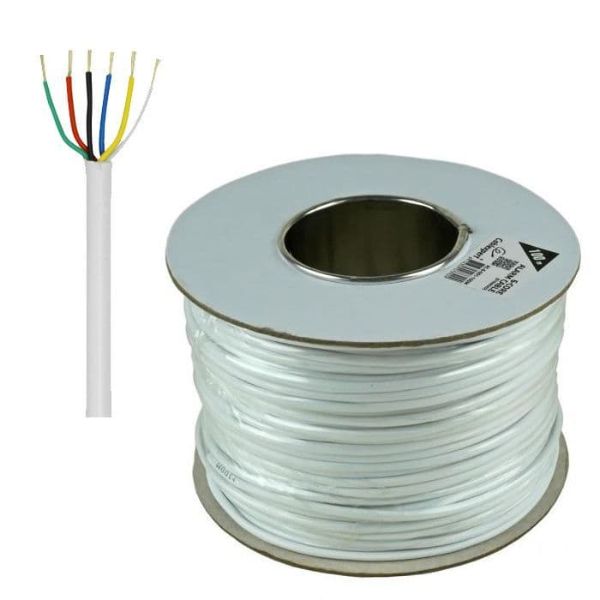

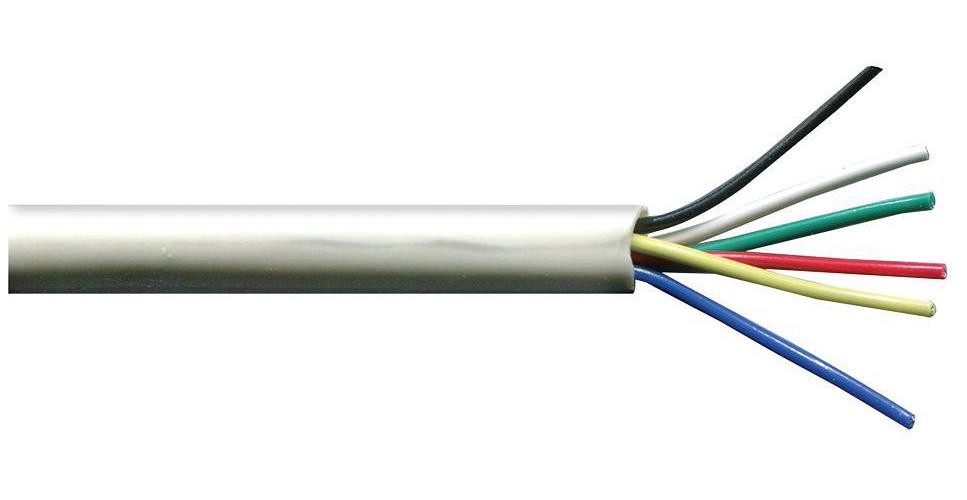

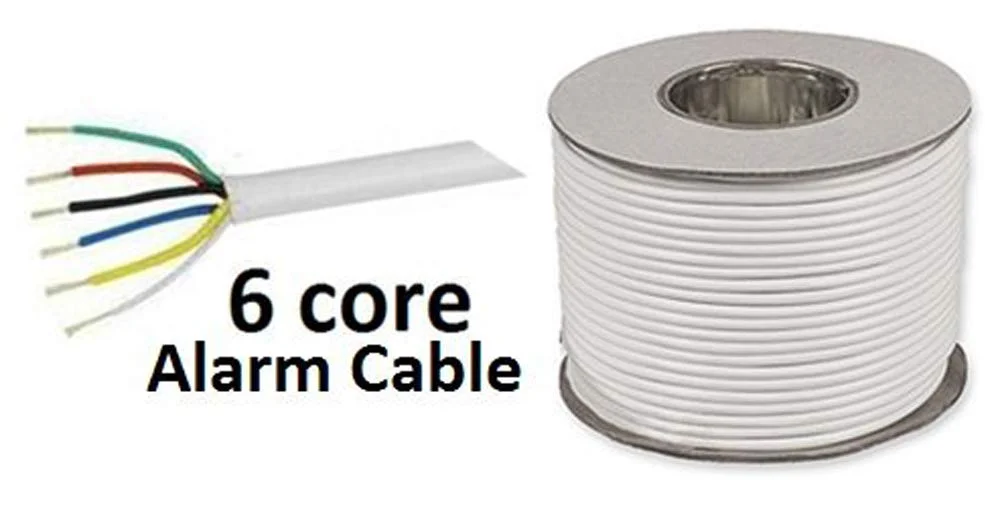

An alarm cable is a flexible cable used for the wiring of burglar alarms and other low voltage circuits. It is a 6 core white alarm cable.

This cable consists of individually colored cores. The Doncaster Cables range of security cables meets the requirements of both domestic and commercial systems.

The cable has a tubed sheath construction and incorporates a tough nylon ripcord; making it easy to tear the mechanically strong but pliable sheath. Core colors: Red, Blue, Yellow, Black, Green, White. Sheath color: White PVC (Polyvinyl Chloride) BS6746. BS4747: section 3.30 approved. Insulation:

PVC (Polyvinyl Chloride). Temperature rating: -10ºC to +70ºC. Cable diameter: 4.2mm. Voltage rating: 60 v.a.c. 100 meters per coil and 6 cores.

This cable consists of individually colored cores. The Doncaster Cables range of security cables meets the requirements of both domestic and commercial systems. BS4747: section 3.30 approved. Insulation: PVC (Polyvinyl Chloride). Temperature rating: -10ºC to +70ºC. Cable diameter: 4.2mm.

Voltage rating: 60 v.a.c. 100 meters per coil and 6 cores. The cable has a tubed sheath construction and incorporates a tough nylon ripcord; making it easy to tear the mechanically strong but pliable sheath.

Description

• Core colors: Red, Blue, Yellow, Black, Green, White.
• Sheath color: White PVC (Polyvinyl Chloride) BS6746.
• BS4747: section 3.30 approved.
• Insulation: PVC (Polyvinyl Chloride).
• Temperature rating: -10ºC to +70ºC.
• Cable diameter: 4.2mm.
• Voltage rating: 60 v.a.c
• 100 meters per coil.
• 6 cores.
