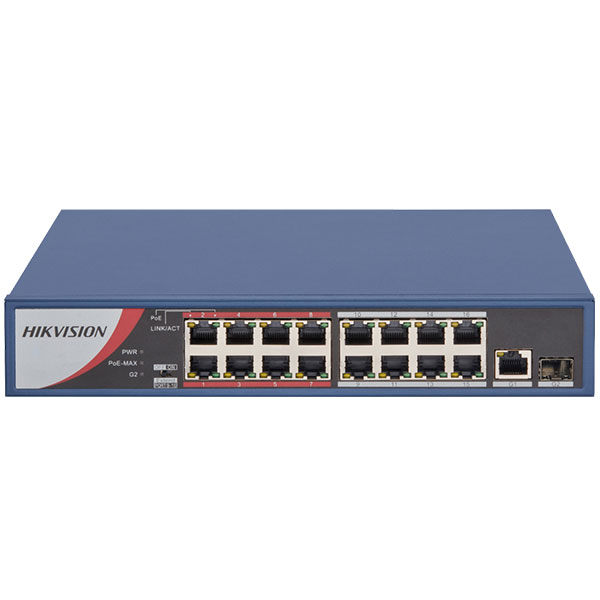

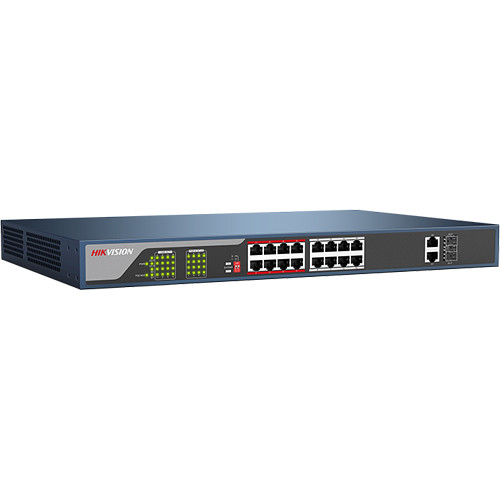

PoE 16 Port DS-3E0318P-E/M

DS-3E0318P-E/M PoE Port

PoE 16 Port DS-3E0318P-E/M

Product introduction

The built-in PoE 16 Port Ai version switch of hasivo integrates PoE 16 Port and Hi PoE functions, in which the first port supports Hi PoE-60W output and can automatically detect compliance.

The IEEE802.3af/at PoE++/HiPoE/BT standard power supply equipment. PoEdog resolves the problem of dead and dropped equipment, automatic repair of the dead machine;

solve the problem of dead and dropped camera wireless AP; solve the problem of restarting switch once a month to the scene; solve the problem of complex installation requiring multiple switches.

Product function

Ai version, with PoE 16 Port function, real-time detection of the status of PoE electrical equipment when POE is started;

when the device side is abnormal, the switch actively resets the port and restores the power supply of PoE; realize no duty.

Single port PoE power up to 30W (select the first port of Ai version to output HiPoE_60W) International POE General Standard IEEE802.3af/at PoE++/HiPoE/BT, supporting full-port standard detection function.

Supports power supply through POE devices such as wireless access points (AP) and network surveillance cameras over 5/6 Ethernet lines Flow control mode

: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back Pressure standard Support automatic port flip (Auto MDI/MDIX) Support port lightning protection (secondary lightning protection requirements)

Exchange mechanism using storage and forwarding All ports support line speed switching and giant frame transmission Zero Configuration Characteristic,

Automatically Provided to Adaptive Equipment Panel indicator lamp monitoring work status and help fault analysis

Product characteristics

1. PoE 16 Port: The system integrates the anti-false-death mechanism.

When the resources of the current equipment system are exhausted or the system task hangs up, the system will automatically restart to ensure the reliable operation of the network.

2. Single-port  power up to 30W (The first port of Ai version can output HiPoE_60W)

M. Port number DS-3E0318P-E/M(B) 16 x 100 Mbps ports, 1 x 1009 Mbps RI45 port, and 1 x 1000 Mbps SFP fiber optical port Port type FU45 port, full-duplex,

MDIAIDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding mode Store-and-forward switching Network parameters Working mode Standard mode (default);

Extend mode High priority ports Ports 1 to 8 Ports for long-distance transmission rt Ports 9 to 16 MAC address table 4K Switching capacity 7.2 Gbps Packet forwarding rate 5.356 Mpps

power supply I Internal cache 2.75 Mbits standard IEEE 802.3af,

IEEE 802.3at  power pin Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide the simultaneous power supply.

Ports for close-range transmission (1-8) support a 4-core power supply, Ethernet cable 1/2/3/6 provide the power supply.

port Ports 1 to 16 Max. port power 30 W  power budget 130 W Max. power consumption 150 W Shell Metal material Gross weight 2.58 kg (5.69 lb) Net weight 1.8 kg (4.0 lb)

Dimension (L x H x 0) 266 mm x 44.5 mm x 220.8 mm (10.5″ x 1.8″ x 87) Operating temperature -10 °C to 55 °C (14 °F to 131 °F) IcH, _ Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)

Operating humidity 5% to 95% (no condensation) Storage humidity 5% to 95% (no condensation)

Specifications

Power supply 100 to 240 VAC, 50/60 Hz, Max. 2.5 A Power consumption In idle 20 W EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015,

EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) I ISafety UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/E0); Reach (Regulation (EC) No 1907/2006)

• Intelligent Management. When the power supply exceeds the limit,  ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range  Transmission. The distance between IPCs and switches can reach a maximum of 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in a harsh environment.
• Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
